Model ASMU
Standard/Heavy Duty
Mechanical Unit Stand
Model ASMU
Standard/Heavy Duty Mechanical Unit Stand
Standard/Heavy Duty Mechanical Unit Stand
- Material:6061-T6 Aluminum
- Miami-Dade NOA#: 24-0117.04
- Florida Product Approval: FL42314
- FBC ASMU Calculator: Calculator
- FBC 8th Edition (2023) Engineering Data: Download PDF
- Specification Sheet: Download PDF
- Purchase: Find Distributors
Product Description
Our Model ASMU stand is engineered for use within and outside hurricane zones (HVHZ - Miami-Dade County & Broward County). Carrying a Florida State Approval, the ASMU complies with all applications throughout the state of Florida. All of our stands are available with optional cross-mounting angles, customer-provided rubber boots, electrical mounting brackets, and anti-vibration pads.
Florida Building Code 7th Edition (2020) & 8th Edition (2023) compliant.
Spread center to center: 20" closed - 42" opened.
Available with optional cross-mounting angle (CAB).
Available with optional, customer provided rubber boots.
Available with optional electrical box mounting bracket (EMB).
Available with optional vibration pad to isolate vibration from condensing unit.
Engineer’s raised-seal drawings available.
Standard Assembly
| Part No. | Description | Size |
|---|---|---|
| ASMUS18 | Aluminum 18" Post Pairs, 20"-30" Spread | 18" |
| ASMUS24 | Aluminum 24" Post Pairs, 20"-30" Spread | 24" |
| ASMUS30 | Aluminum 30" Post Pairs, 20"-30" Spread | 30" |
Heavy Assembly
| Part No. | Description | Size |
|---|---|---|
| ASMUH18 | Aluminum 18" Post Pairs, 34"-42" Spread | 18" |
| ASMUH24 | Aluminum 24" Post Pairs, 34"-42" Spread | 24" |
| ASMUH30 | Aluminum 30" Post Pairs, 34"-42" Spread | 30" |
I-Beams
| Part No. | Description |
|---|---|
| ASI-3 | Aluminum Stand I-Beam, 3' |
| ASI-6 | Aluminum Stand I-Beam, 6' |
| ASI-9 | Aluminum Stand I-Beam, 9' |
| ASI-12 | Aluminum Stand I-Beam, 12' |
| ASI-15 | Aluminum Stand I-Beam, 15' |
| ASI-18 | Aluminum Stand I-Beam, 18' |

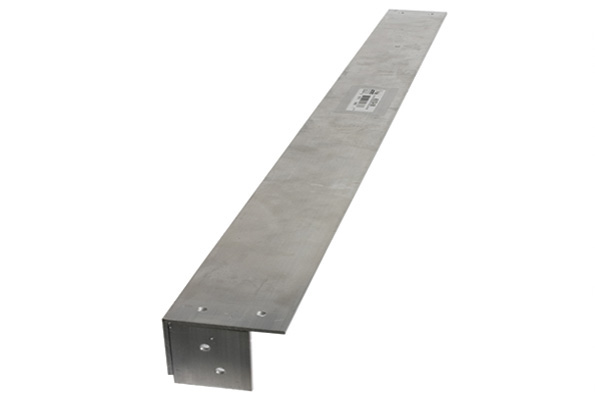

Cross Mounting Angle
| Part No. | Description |
|---|---|
| ASCAB-XX | Angle length is determined by the distance between the center webbing of I-Beams |
ASMU Options

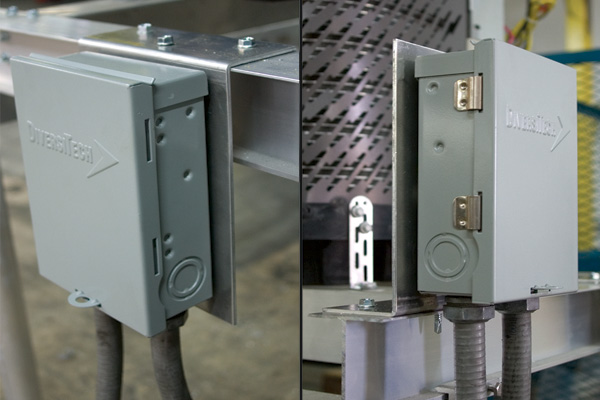

Electrical Mounting Bracket
